Filtered Rain Shower Head
Top-Mounted Filter Shower Heads
Compare the HY-07 to HY-12 top-mounted shower-head range. Select by model and the catalog-listed size, weight and media rather than assuming every design uses the same cartridge.
Download the Hydro catalog (PDF, 8 pages)
The source catalog lists a reference flow of 6-8 L/min and a service interval of 2-3 months. Test pressure and water conditions are not specified; actual flow and replacement needs depend on the installation and use. Sizes are reproduced from the catalog field labelled Size; confirm product and packaging dimensions using the model drawing. Media names are reproduced as listed and do not establish certified contaminant-removal performance.
Top-mounted filter shower head

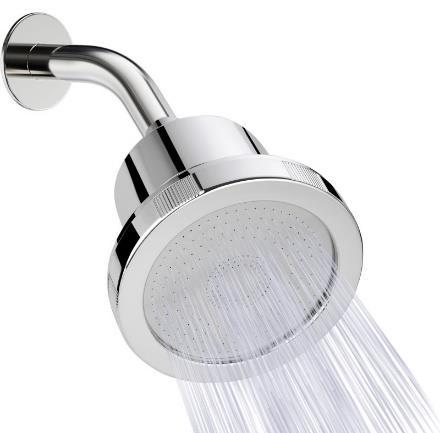

HY-07
| Catalog size | 116 x 116 x 133 mm |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 425 g / 500 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | ACF / Amino acid anti-scale + ACF |
Source: Filter Shower Head Catalog, page 3.
Top-mounted filter shower head

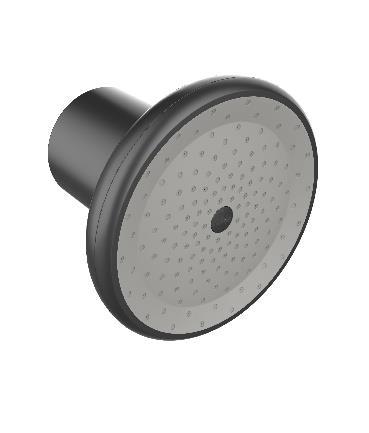

HY-08
| Catalog size | 6 in |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 525 g / 600 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | ACF / Amino acid anti-scale + ACF |
Source: Filter Shower Head Catalog, page 3.
Top-mounted filter shower head

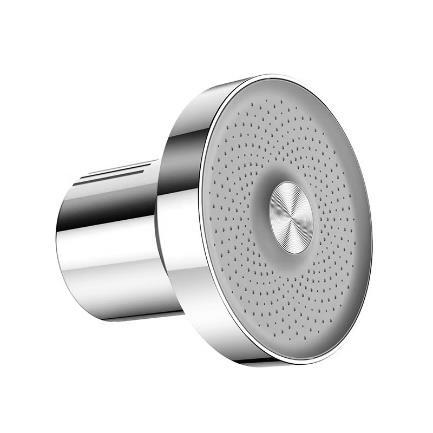

HY-09
| Catalog size | 6 in |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 425 g / 550 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | KDF + ACF + Mineralized Ball + Antibacterial Ball |
Source: Filter Shower Head Catalog, page 3.
Top-mounted filter shower head

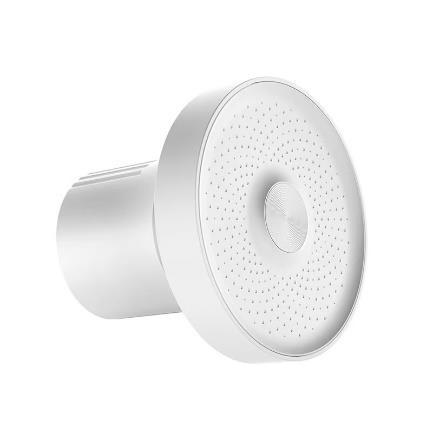

HY-10
| Catalog size | 6 in |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 425 g / 550 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | KDF + ACF + Mineralized Ball + Antibacterial Ball |
Source: Filter Shower Head Catalog, page 4.
Top-mounted filter shower head

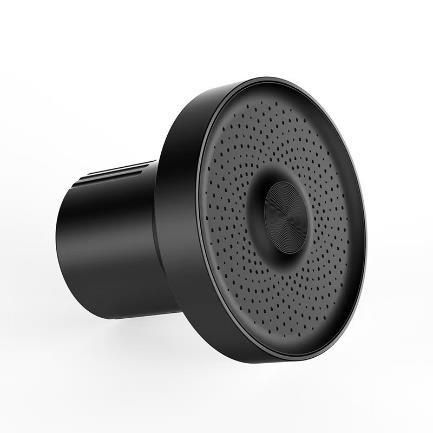

HY-11
| Catalog size | 6 in |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 425 g / 550 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | KDF + ACF + Mineralized Ball + Antibacterial Ball |
Source: Filter Shower Head Catalog, page 4.
Top-mounted filter shower head

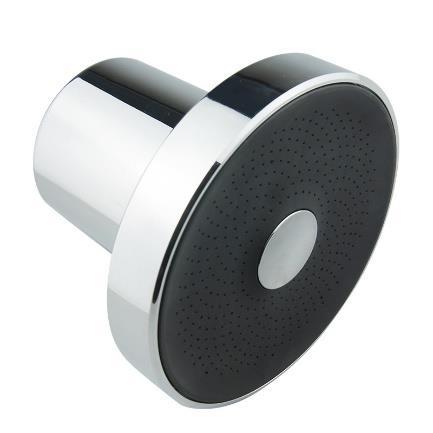

HY-12
| Catalog size | 6 in |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 425 g / 550 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | KDF + ACF + Mineralized Ball + Antibacterial Ball |
Source: Filter Shower Head Catalog, page 4.
Installation details to confirm
Provide the selected model, installation connection, target market and expected quantity. Request the applicable connection drawing, working pressure and temperature limits, replacement cartridge reference, and any performance documents required for the project.
Built for comfortable overhead showering
The round spray face is designed for balanced coverage, while the cylindrical upper housing provides a practical location for project-specific filtration media.
Wide rainfall coverage
A broad circular face and distributed micro-nozzle pattern support an even, relaxing overhead shower experience.
Integrated filter format
The filter housing is incorporated into the shower-head body for a cleaner installation and straightforward replacement planning.
Project-ready design
Suitable for residential bathrooms, hotels, apartments and OEM programs requiring configurable media and finishes.
OEM, private label and hospitality support
Share your target market, water conditions, connection requirements, expected order volume and branding direction. Our team can support product configuration, packaging and supply planning.
Specify a filtered rain shower head
For a rainfall shower filter project, provide the connection requirements, installation location, preferred finish and target water conditions. Confirm the integrated filter configuration and replacement-cartridge arrangement for the chosen model. Residential and hospitality enquiries can then be reviewed against the same product specification.
Compare the HY-07 to HY-12 mounting format
These are top-mounted shower-head references. Confirm the pipe connection, available overhead clearance, mounting load and cartridge-servicing method for the chosen model before specifying an installation.
Use the media names and catalog size fields as reference information. They do not establish a certified removal percentage or a universal replacement interval. Compare handheld and inline formats or review the source notes.
