Faucet Water Filter
Compare faucet-mounted formats by model, cartridge description and intended use. HY-17 to HY-20 have different supplied specifications; a shared installation format does not mean they share media, service life or drinking-water suitability.
Model-specific selection
Compare the published configuration
HY-18, HY-19 and HY-20 are listed as not for direct drinking. Check the intended use and operating requirements of each model before selecting a configuration.
Alternative housing options

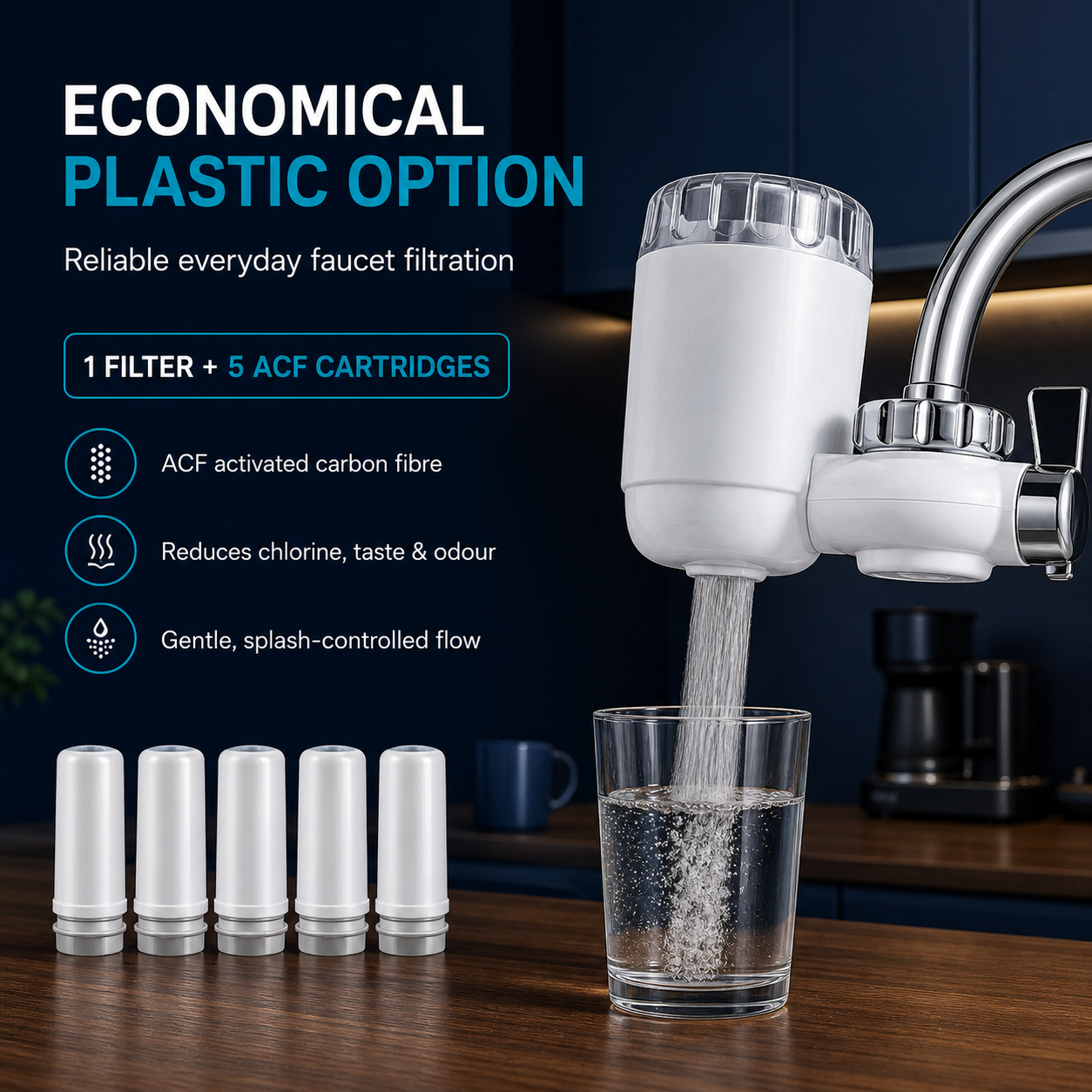

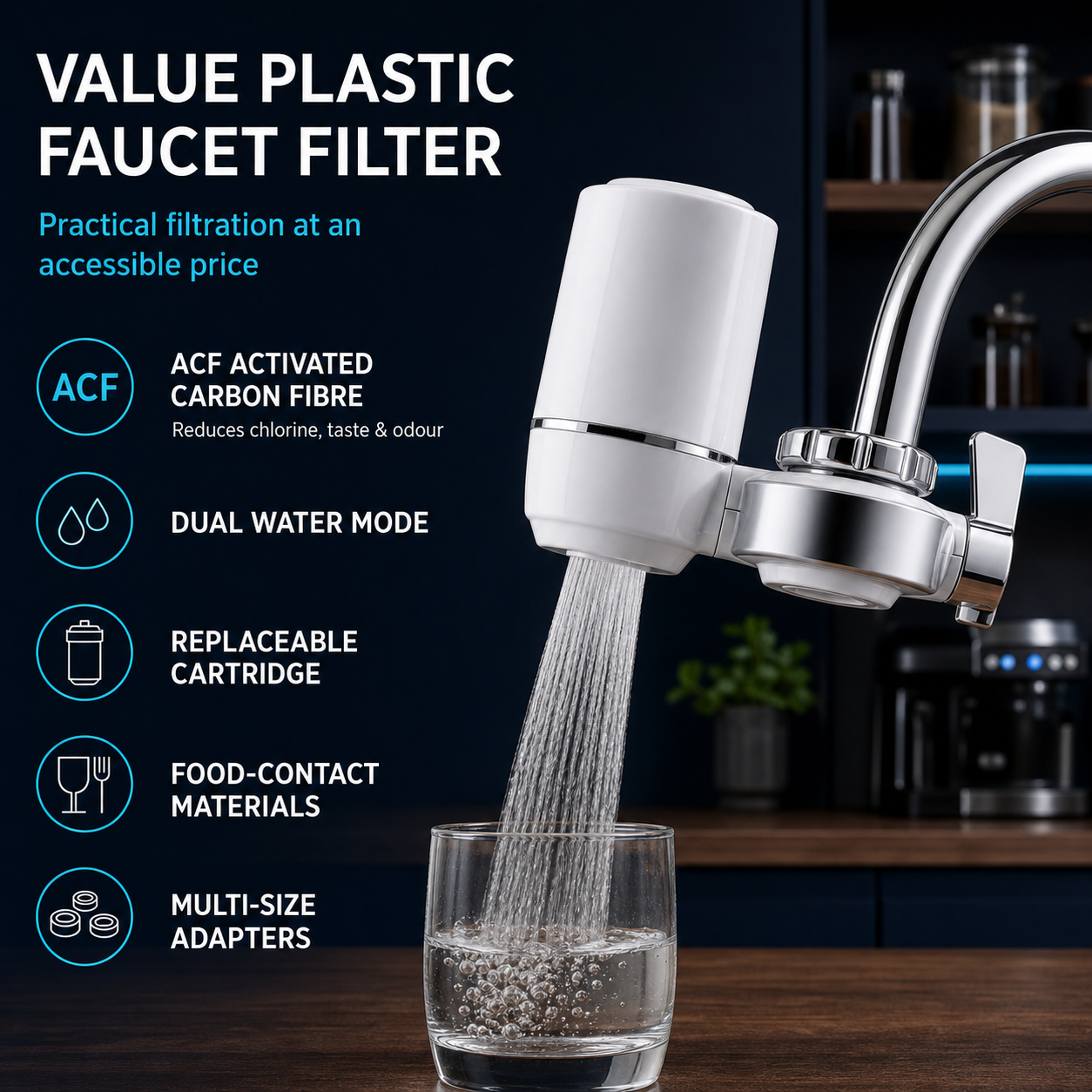

Value Plastic Options
Economical plastic-housing configurations offer the same convenient faucet-mounted format at a more accessible target price. Media, outlet modes and replacement arrangements vary by model. In particular, HY-20 lists cartridge replacement as not supported; confirm the selected configuration and accessories.
Faucet Filter Models HY-17, HY-18, HY-19 and HY-20
Compare HY-17, HY-18, HY-19 and HY-20 faucet filters using the updated product images and specifications below.
Download the Hydro catalog (PDF, 8 pages)
HY-17, HY-18, HY-19 and HY-20 use the updated product images and supplied specifications below. Confirm the selected cartridge configuration and application requirements before ordering.
Faucet filter
HY-17
| Product dimensions | 141 x 112 x 65 mm |
|---|---|
| Filter material | Activated carbon |
| Filtration stages | 7-stage filtration |
| Filter cartridge count | 1 |
| Product category | Water purifier |
| Water outlet modes | Dual outlet |
| Intended use | Drinking water |
| Stated filtration effects | Scale and chlorine reduction |
Source: updated product image and supplied specifications.
Faucet filter

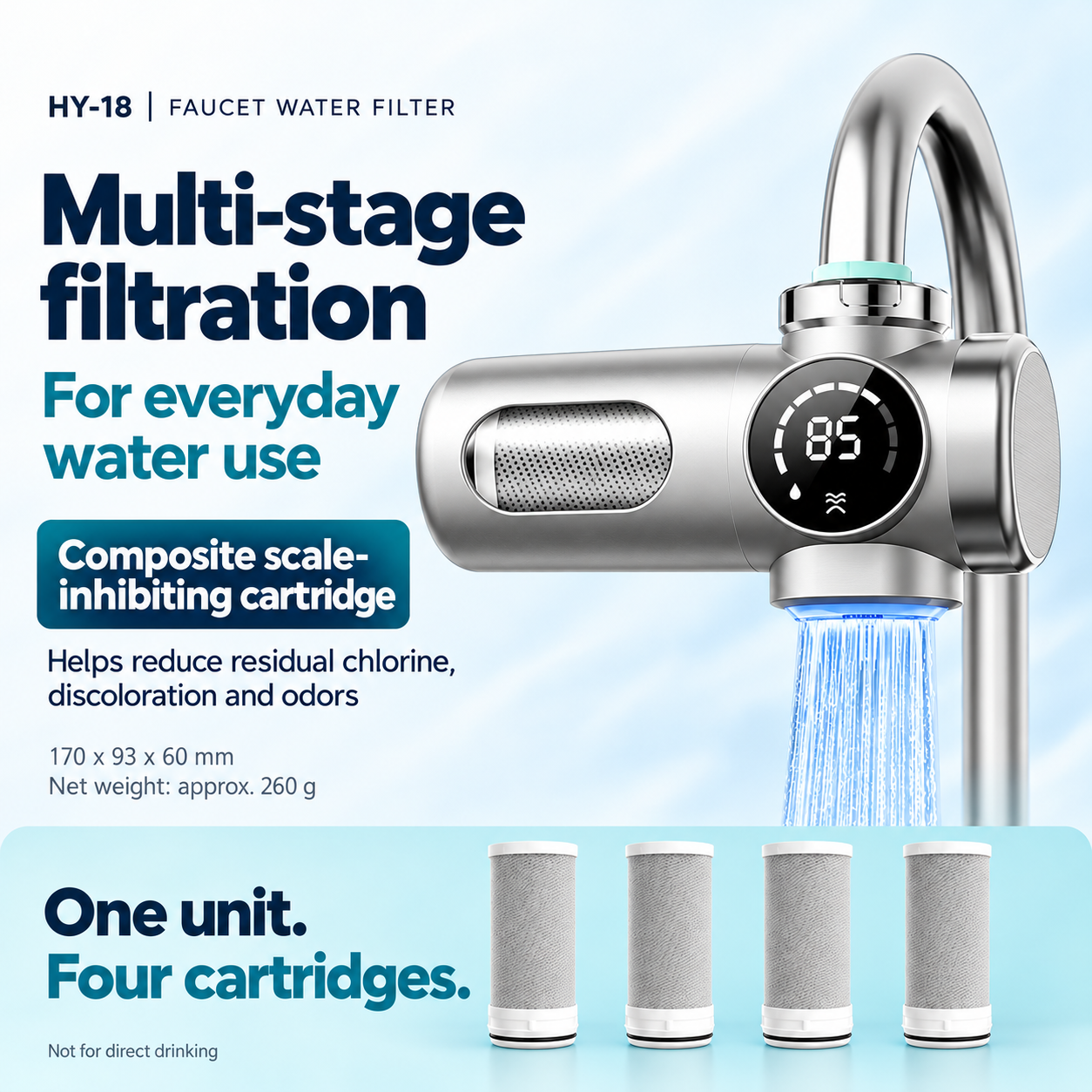

HY-18
| Size | 170 x 93 x 60 mm |
|---|---|
| Filtration stages | 7-stage filtration |
| Filter media | Not specified |
| Cartridge staging (as listed) | 1 stage / 6+ stages |
| Treatment type / principle | Ultrafiltration |
| Water outlet modes | Dual outlet |
| Intended use | Not for direct drinking |
| Stated filtration effects | Scale and sediment reduction |
| Product launch year | 2025 |
| Net weight | Approx. 260 g |
Source: updated product image and supplied specifications. Cartridge staging is reproduced as listed; confirm the selected configuration.
Faucet filter

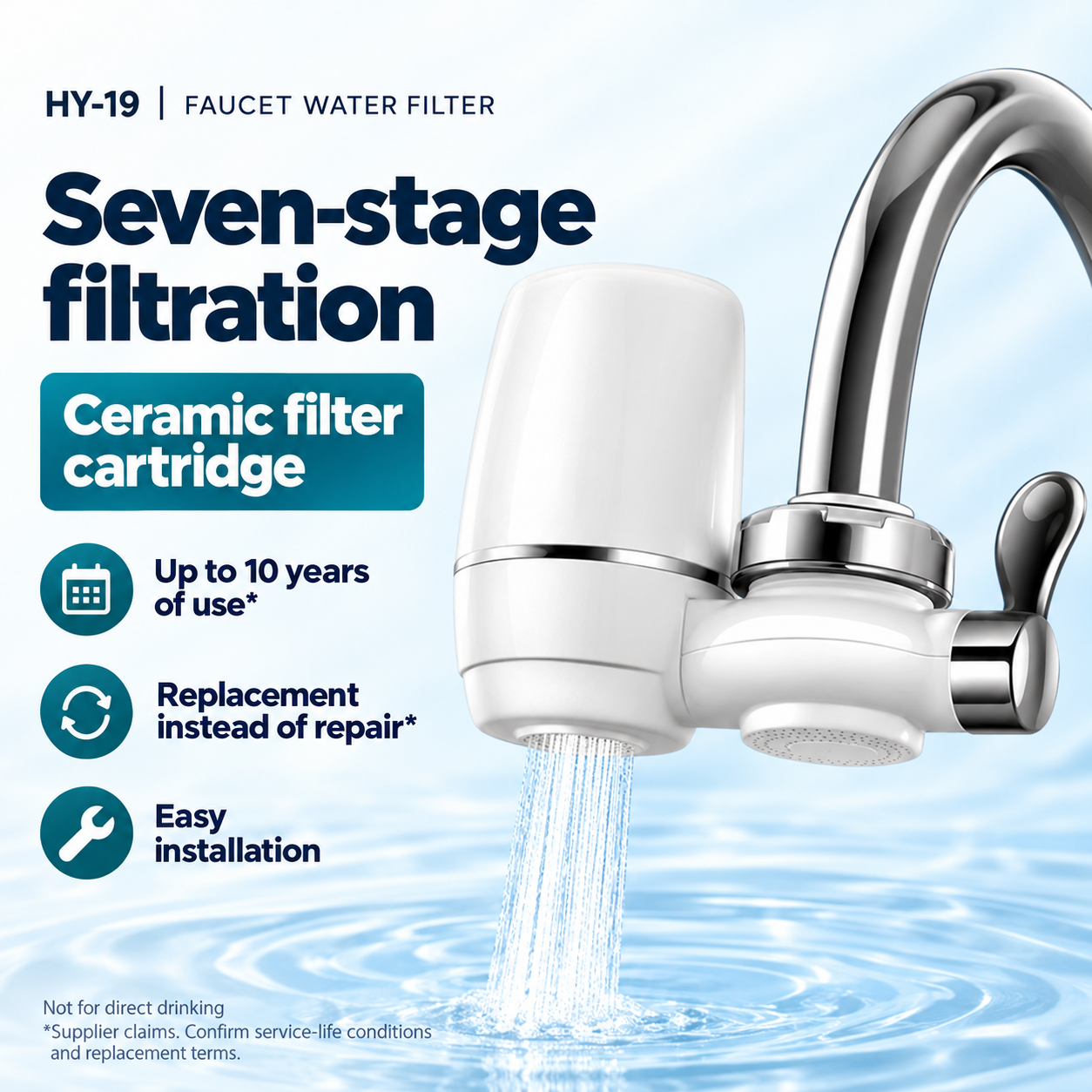

HY-19
| Brand (as supplied) | ZOOSEN |
|---|---|
| Filter cartridge | Ceramic cartridge |
| Filtration stages | 7-stage filtration |
| Cartridge staging (as listed) | 6+ stages |
| Treatment category | Pre-filtration |
| Working principle | Ceramic filtration |
| Water outlet mode | Single outlet |
| Intended use | Not for direct drinking |
| Stated filtration effects | Chlorine and heavy metal reduction |
| Product launch year | 2018 |
Source: supplied product image and specifications. Service-life and replacement statements in the image are supplier claims; confirm applicable conditions and supply terms.
Faucet filter

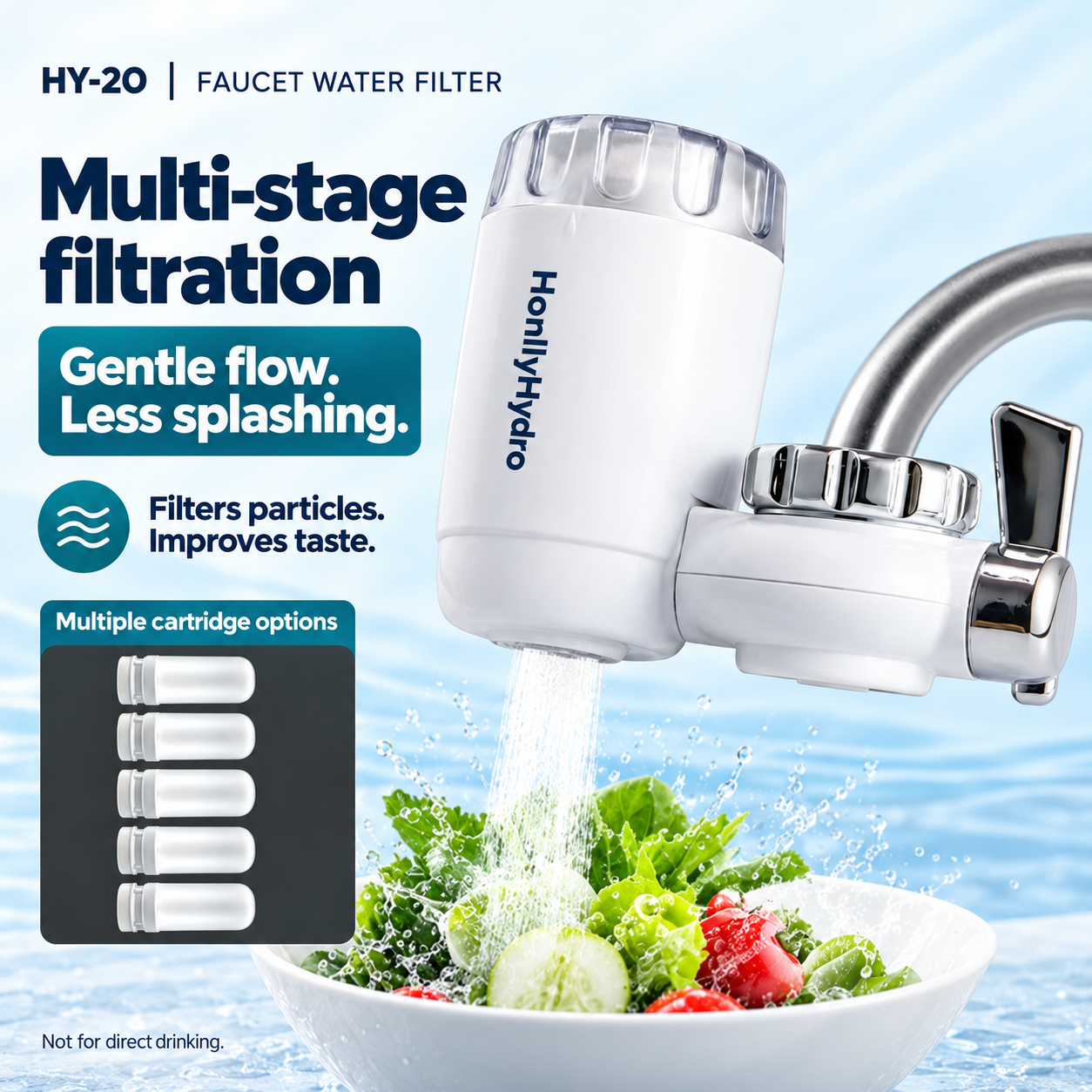

HY-20
| Brand | HonllyHydro |
|---|---|
| Filter cartridge | Ceramic cartridge |
| Filtration classification | Other (as listed) |
| Cartridge staging (as listed) | 1 stage |
| Stated filtration effects | Rust and sediment reduction |
| Product category | Water purifier |
| Working principle | Ceramic filtration |
| Water outlet modes | Dual outlet |
| Intended use | Not for direct drinking |
| Supply type | Stock supply (as listed) |
| Feed water | Municipal tap water |
| Rated power | 0 W |
| Temperature range | 0-65 °C |
| Installation point | Point-of-use filtration |
| Water pressure range | 0.1-0.4 MPa |
| Replaceable cartridge | No (as listed) |
| Cartridge alarm | Not supported |
| Housing material | ABS |
| Included accessory | Filter connector |
Source: supplied product image and specifications. Cartridge replacement is listed as not supported; confirm cartridge and accessory compatibility before ordering.
Installation details to confirm
Provide the selected model, installation connection, target market and expected quantity. Request the applicable connection drawing, working pressure and temperature limits, replacement cartridge reference, and any performance documents required for the project.
Different cartridge descriptions
Compare the supplied media description in each model table. Activated carbon, ceramic and unspecified-media references must not be presented as one shared ACF cartridge.
Service life needs a specification
No common capacity or replacement interval is specified for every model here. Request the selected cartridge instructions and operating conditions.
Configurable Media
For any requested contaminant-reduction claim, identify the model and require the matching evidence before using the claim in project documents.
Product Configuration
For a private-label or distribution project, confirm the exact model, housing, cartridge and installation requirements. Replacement arrangements differ across the published models.

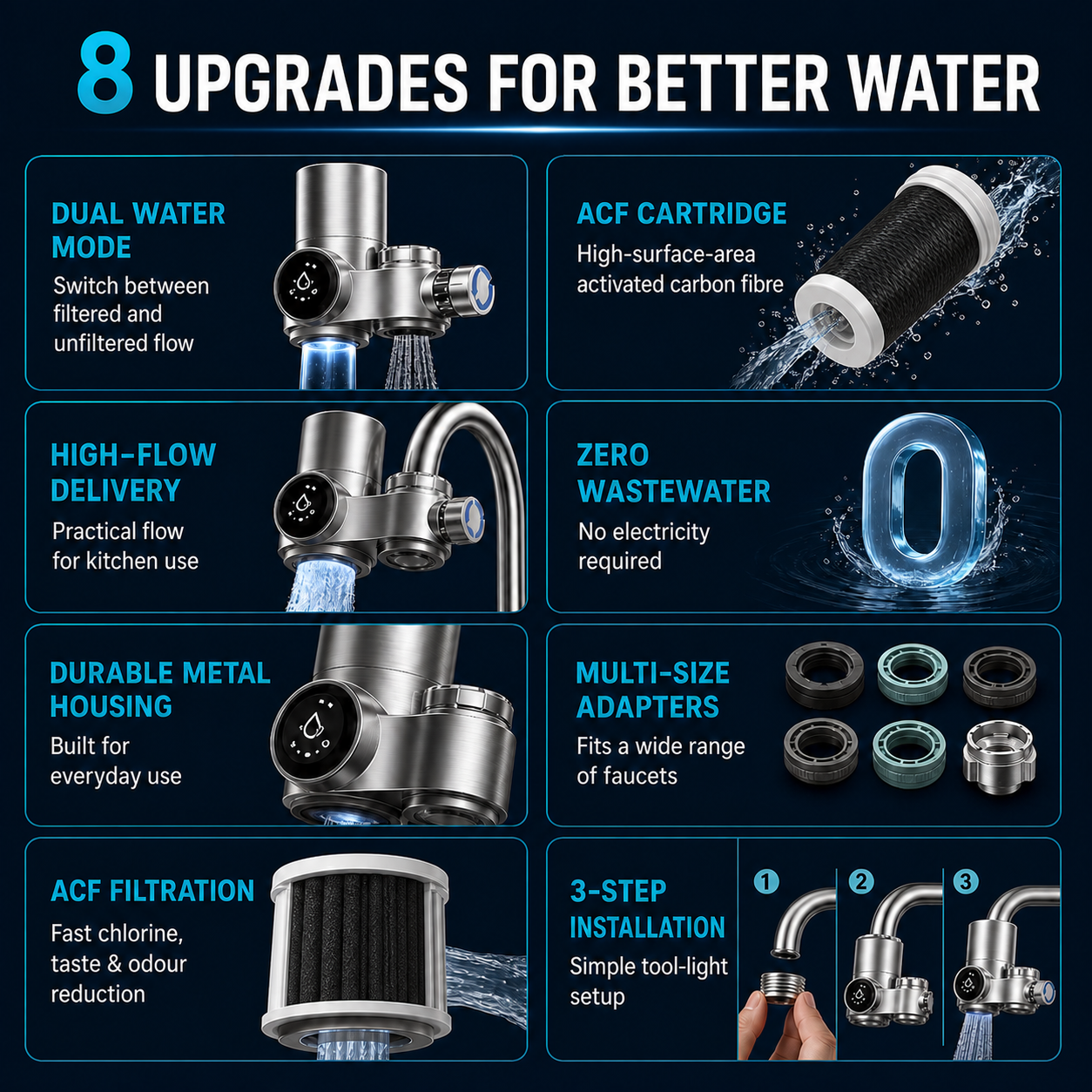

- Model-specific cartridge description
- Filtered and unfiltered water modes

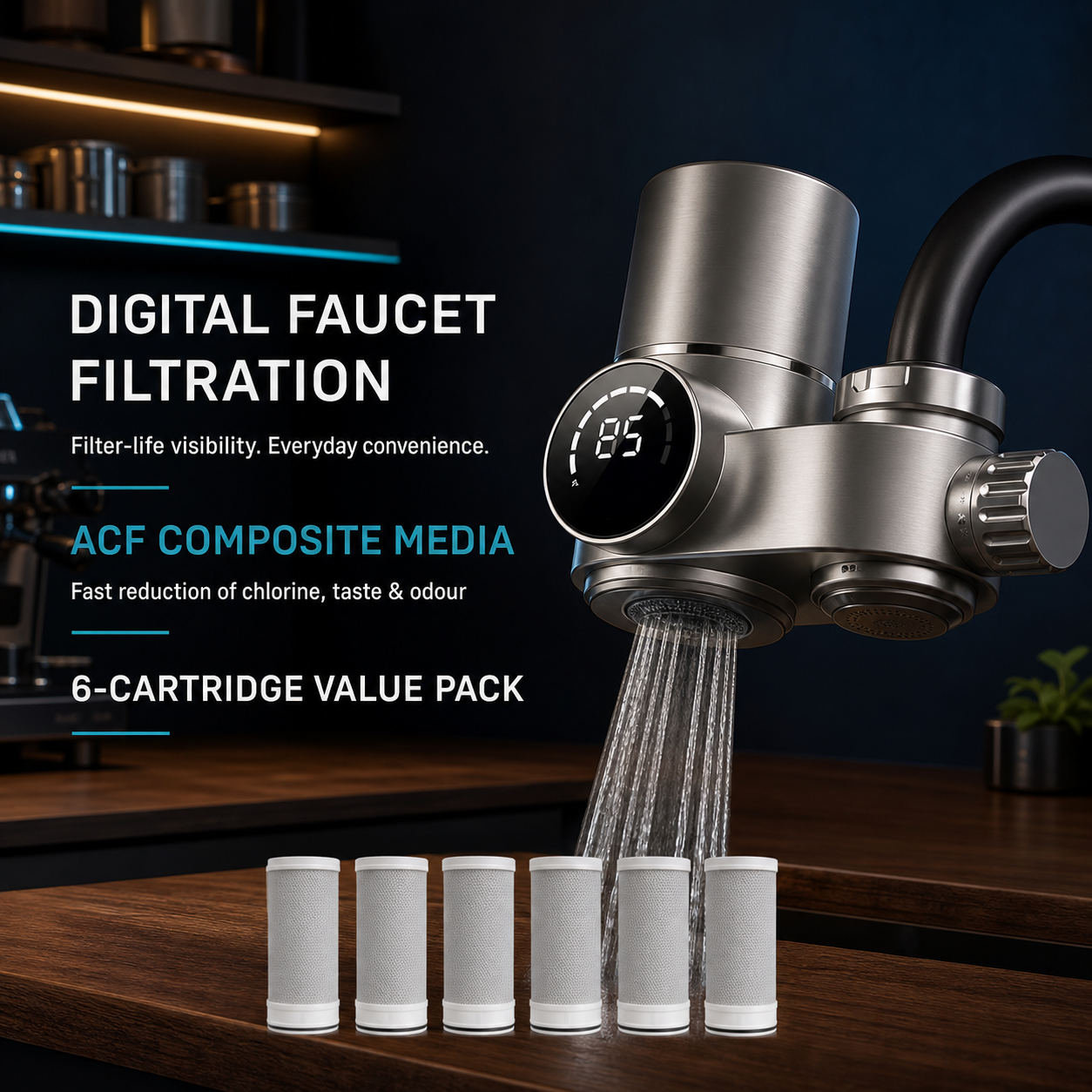

- Digital display on illustrated models where shown
- Model-specific housing and material options
- OEM colour, branding and packaging
Certification and performance
Configurations may be developed for applicable NSF/ANSI 42 chlorine, taste and odour performance and NSF/ANSI 372 material requirements. Certification scope and reduction performance depend on the selected model and filter-media specification; request the corresponding test reports before making market claims.
Check faucet compatibility before ordering
For a faucet-mounted water filter, confirm the tap connection and required adapter, then select the housing and cartridge configuration. Use the specific model and media configuration when requesting test reports. The capacity and performance information on this page should be read with the stated configuration and usage conditions.
Choose among HY-17, HY-18, HY-19 and HY-20
HY-17 and HY-18 have different supplied dimensions; HY-19 retains its supplied ZOOSEN brand, while HY-20 is presented with HonllyHydro branding. Do not transfer a media description, capacity or performance statement from one model to another.
Compare the current model reference or read the evidence and source notes. The listing for HY-17 describes drinking-water use; obtain the applicable documentation before treating that description as finished-water verification.
