Shower Filtration
Filtered Shower Heads
Integrated high-flow designs for common bathroom connections.
Inline Shower Filters
Replaceable treatment between supply and shower head.
OEM Cartridges
Custom media, housing, label and packaging programmes.
Application features

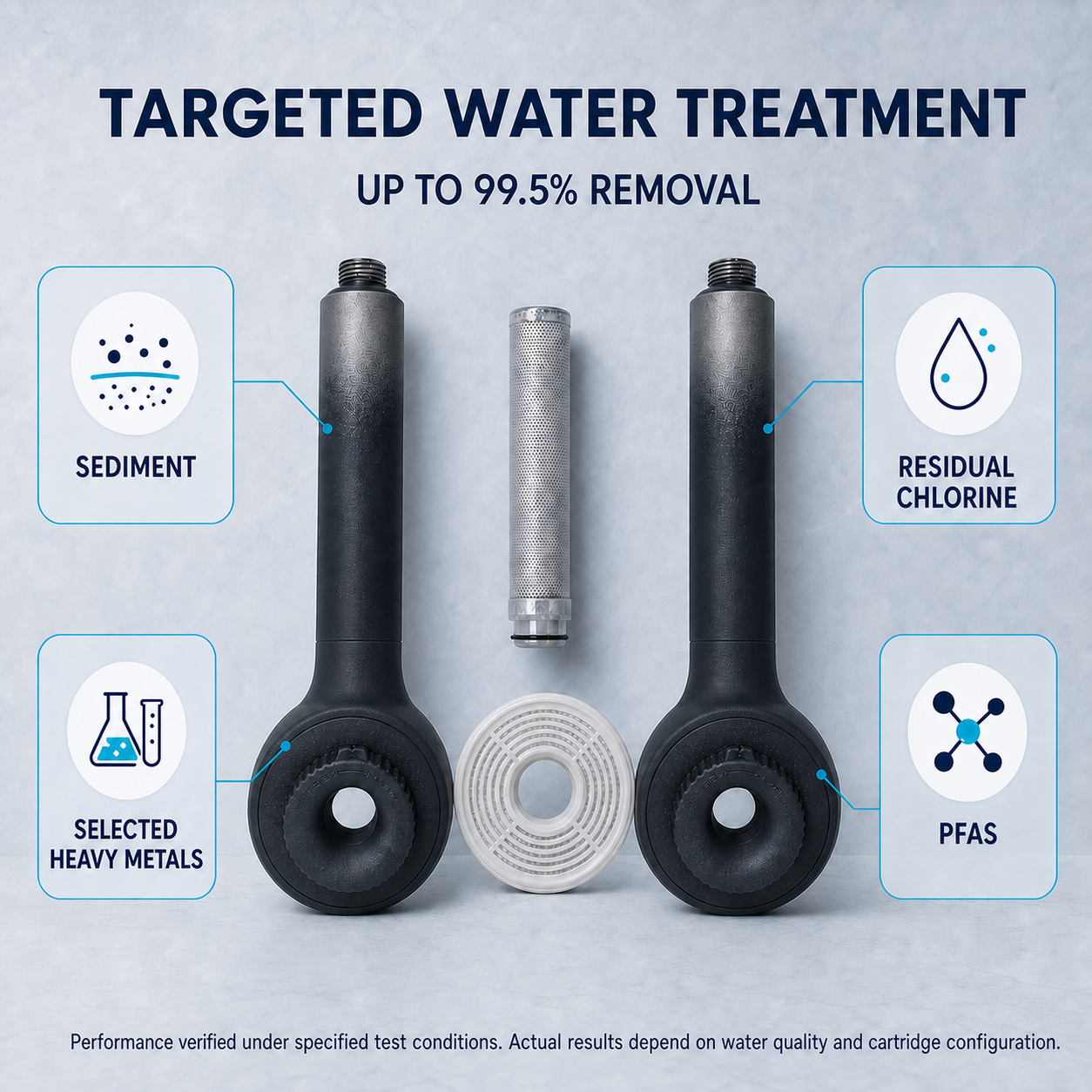

- Residual chlorine reduction
- Low pressure-loss design

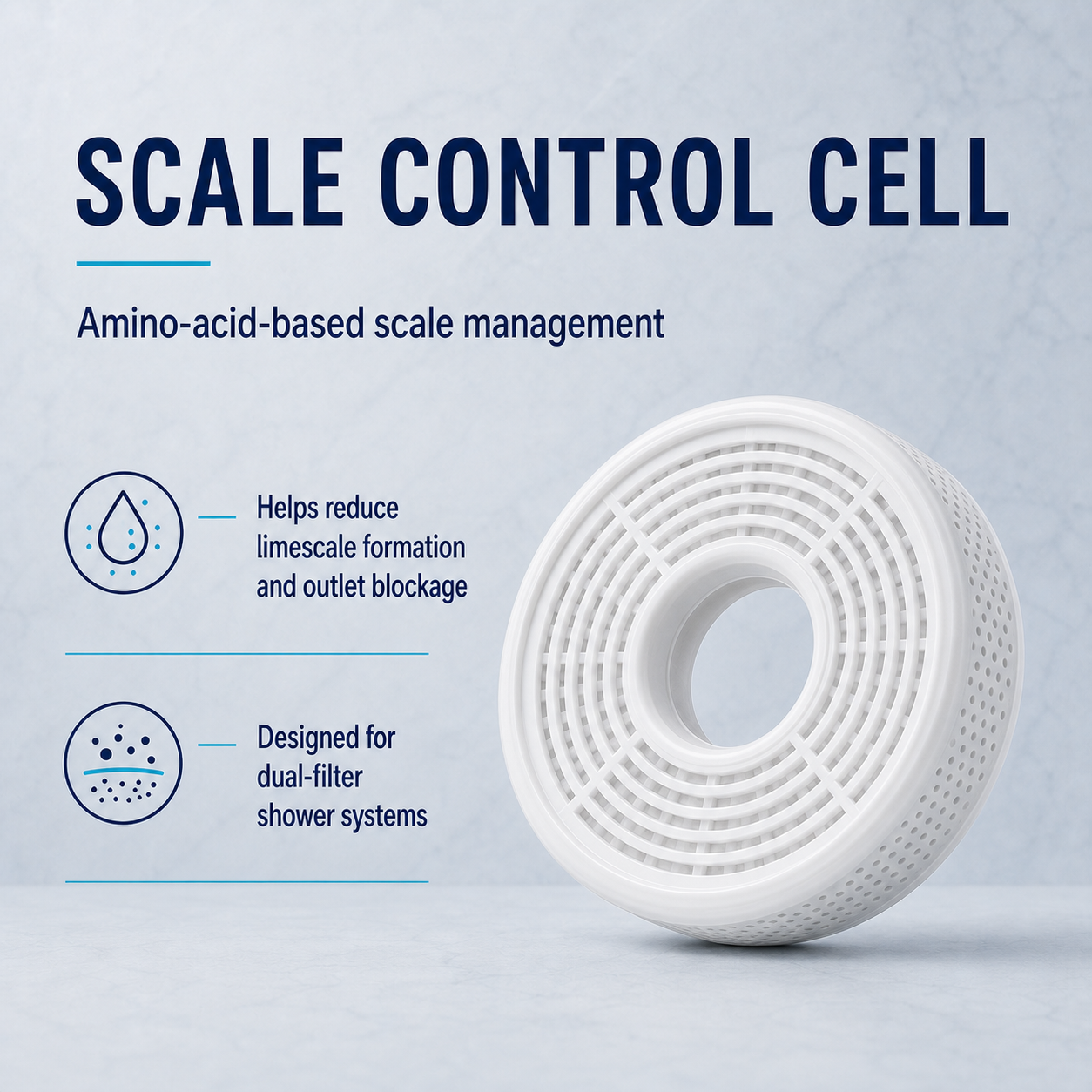

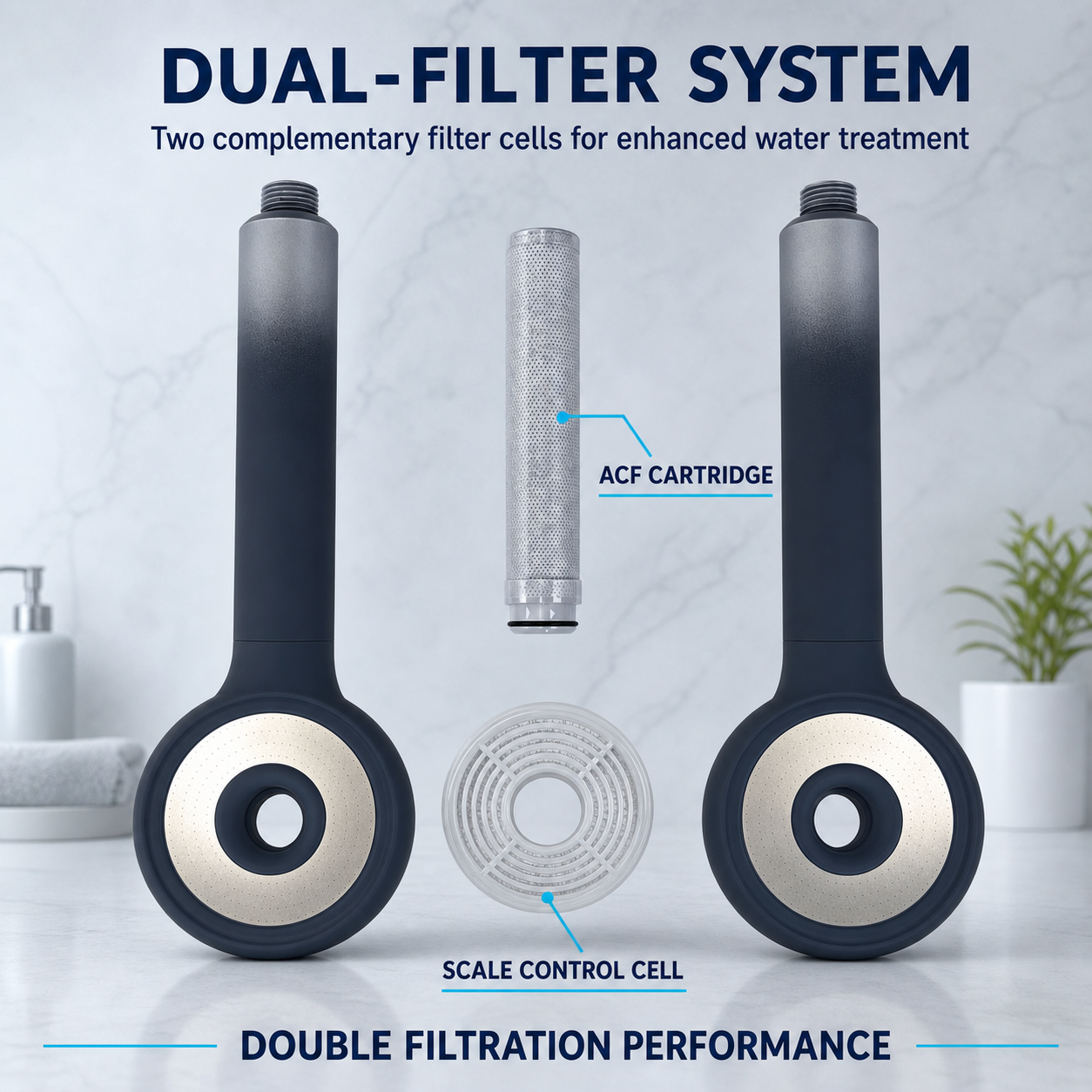

- Scale-management media options
- Replaceable cartridge formats
Filter Shower Heads and Inline Shower Filters
Compare HY-01 to HY-04 and HY-06 handheld shower heads, plus HY-14 and HY-15 inline shower filters using the dimensions, weights and media options listed in the product catalog.
Download the Hydro catalog (PDF, 8 pages)
The source catalog lists a reference flow of 6-8 L/min and a service interval of 2-3 months. Test pressure and water conditions are not specified; actual flow and replacement needs depend on the installation and use. Sizes are reproduced from the catalog field labelled Size; confirm product and packaging dimensions using the model drawing. Media names are reproduced as listed and do not establish certified contaminant-removal performance.

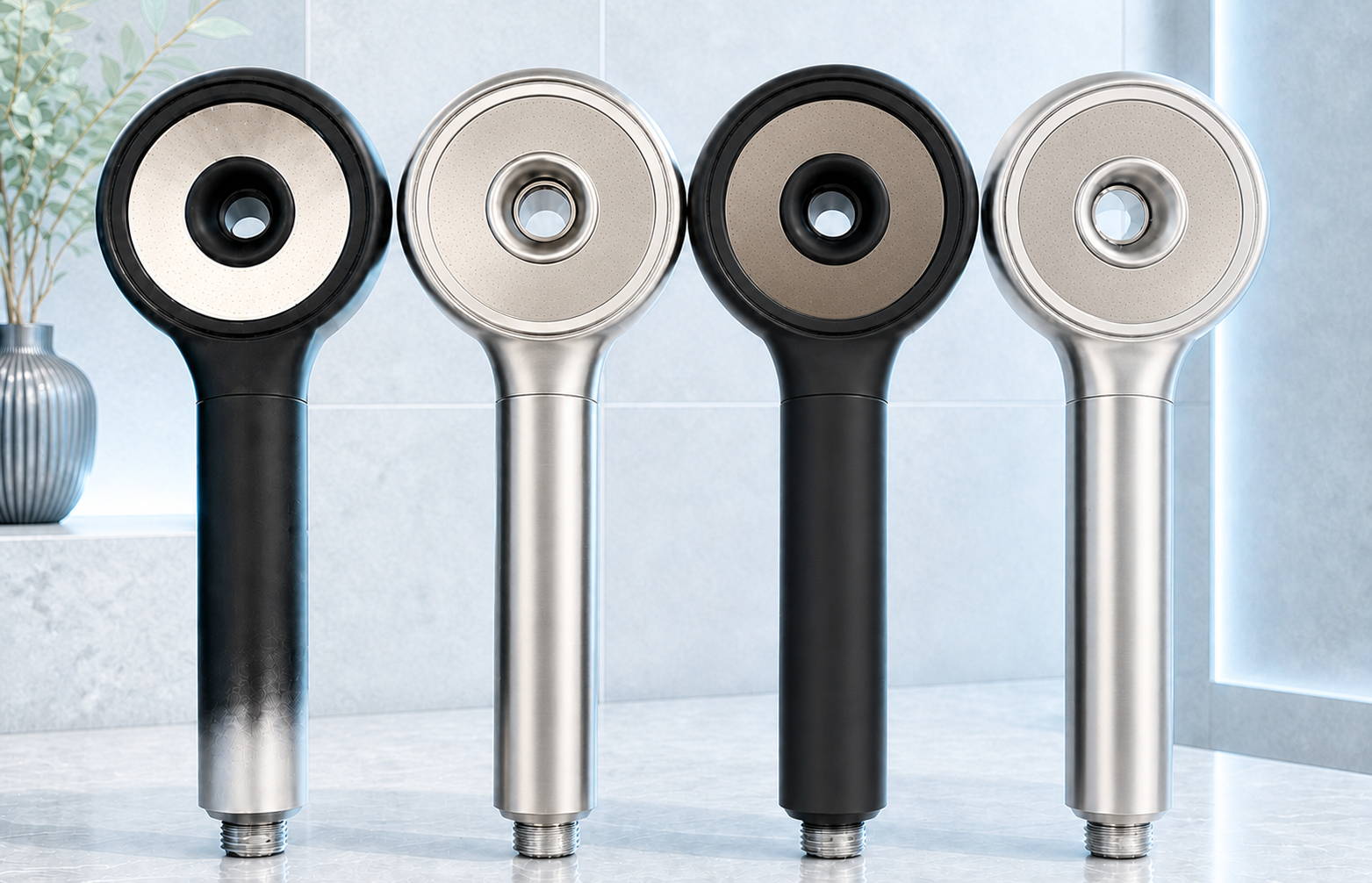

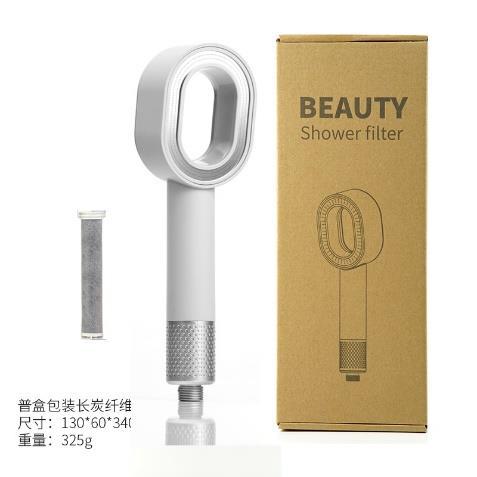

Handheld filter shower head
HY-01
| Catalog size | 130 x 60 x 340 mm |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 325 g / 400 g |
| Catalog service interval | 2-3 months |

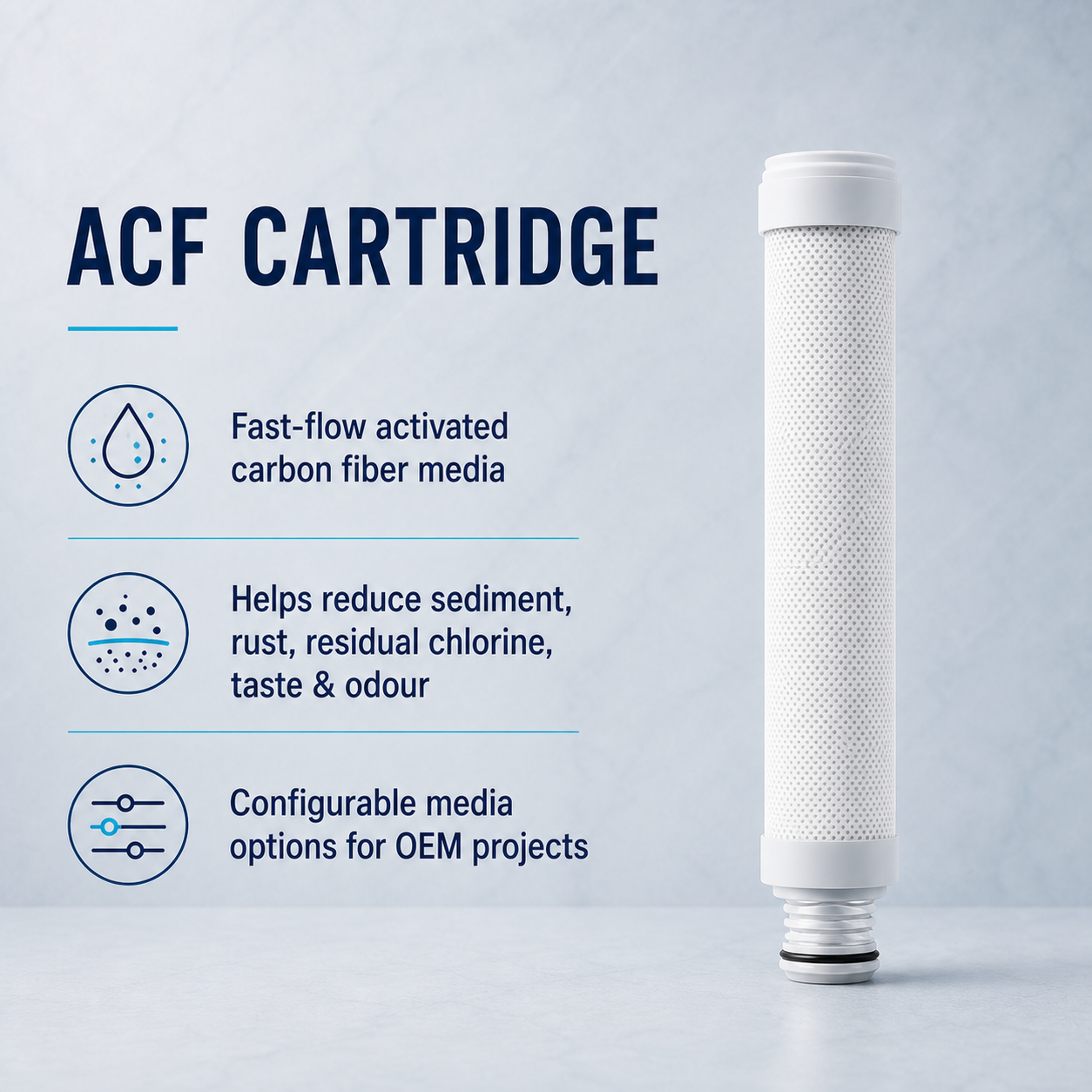

| Filter media – as listed | ACF / ACF + VC / Amino acid anti-scale + ACF |
Source: Filter Shower Head Catalog, page 1.

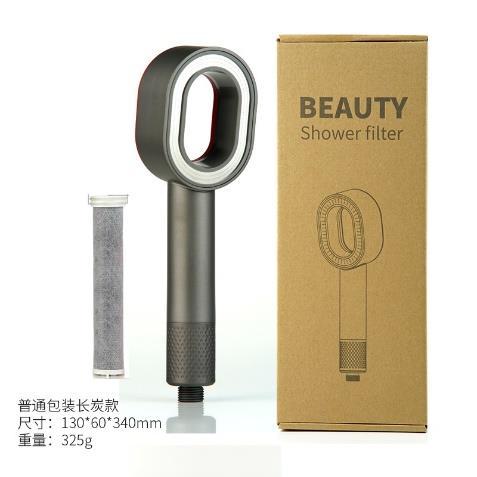

Handheld filter shower head
HY-02
| Catalog size | 130 x 60 x 340 mm |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 325 g / 400 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | ACF / ACF + VC / Amino acid anti-scale + ACF |
Source: Filter Shower Head Catalog, page 1.

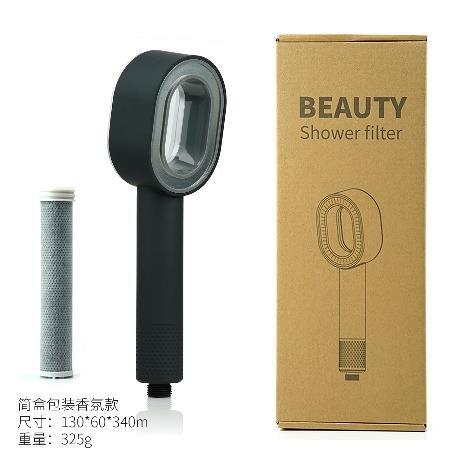

Handheld filter shower head
HY-03
| Catalog size | 130 x 60 x 340 mm |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 325 g / 400 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | ACF / ACF + VC / Amino acid anti-scale + ACF |
Source: Filter Shower Head Catalog, page 1.
Handheld filter shower head

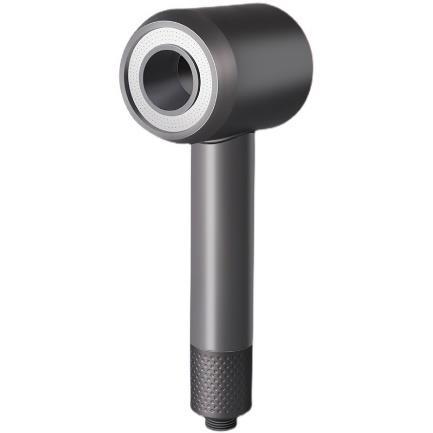

HY-04
| Catalog size | 130 x 65 x 350 mm |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 325 g / 400 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | ACF / ACF + VC / Amino acid anti-scale + ACF |
Source: Filter Shower Head Catalog, page 2.

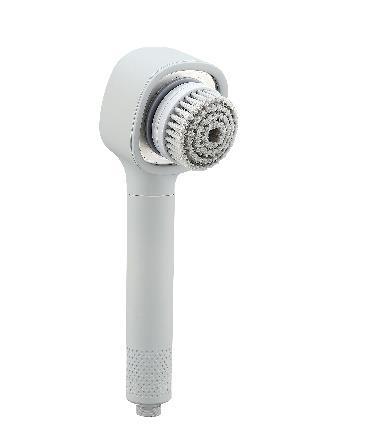

Handheld filter shower head
HY-06
| Catalog size | 135 x 65 x 350 mm |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 425 g / 540 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | ACF / ACF + VC / Amino acid anti-scale + ACF |
Source: Filter Shower Head Catalog, page 2.

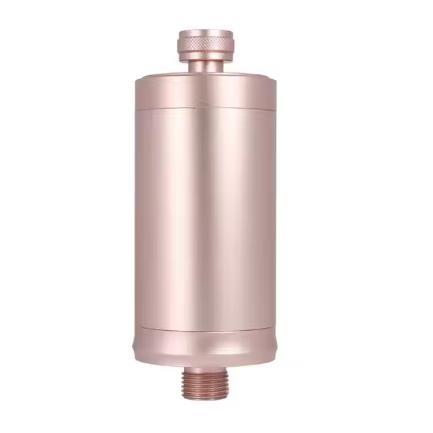

Inline shower filter
HY-14
| Catalog size | 65 x 65 x 173 mm |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 425 g / 500 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | KDF + Calcium Sulfite + VC Ball + Mineralized Ball + Antibacterial Ball |
Source: Filter Shower Head Catalog, page 5.

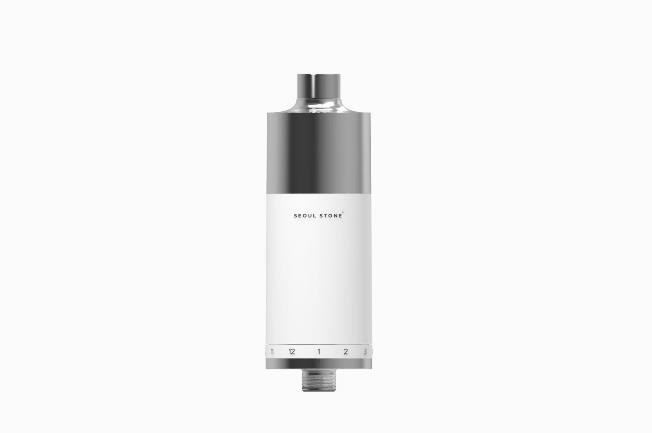

Inline shower filter
HY-15
| Catalog size | 60 x 60 x 160 mm |
|---|---|
| Reference flow | 6-8 L/min |
| Net / gross weight | 325 g / 400 g |
| Catalog service interval | 2-3 months |
| Filter media – as listed | KDF + Calcium Sulfite + VC Ball + Mineralized Ball + Antibacterial Ball |
Source: Filter Shower Head Catalog, page 5.
Installation details to confirm
Provide the selected model, installation connection, target market and expected quantity. Request the applicable connection drawing, working pressure and temperature limits, replacement cartridge reference, and any performance documents required for the project.
Choose a shower filter and its replacement cartridge
Compare integrated filtered shower heads with inline shower filters by installation position, connection, available space and cartridge access. For an OEM range, specify the housing and replacement cartridge together so buyers can identify the correct part for future servicing.

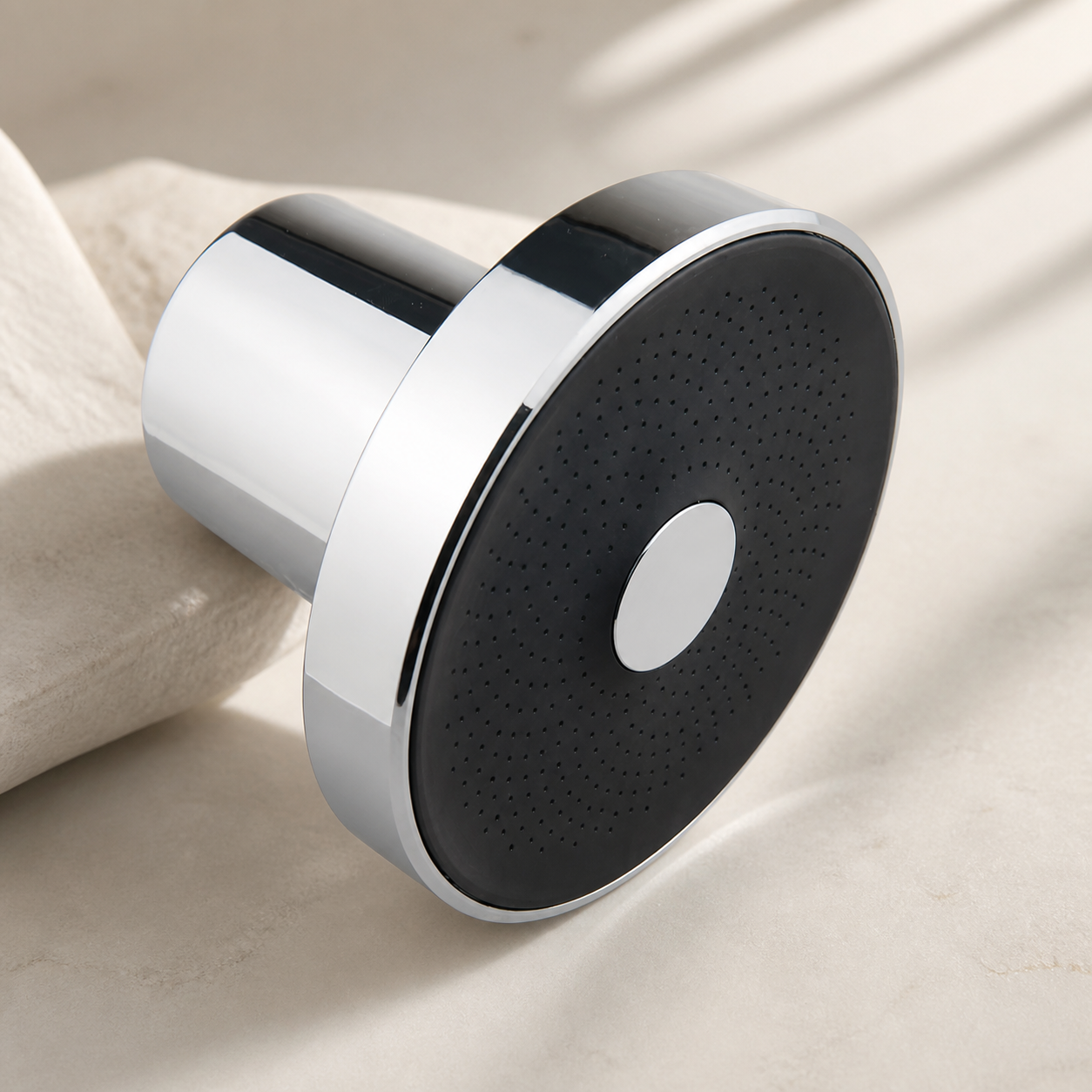

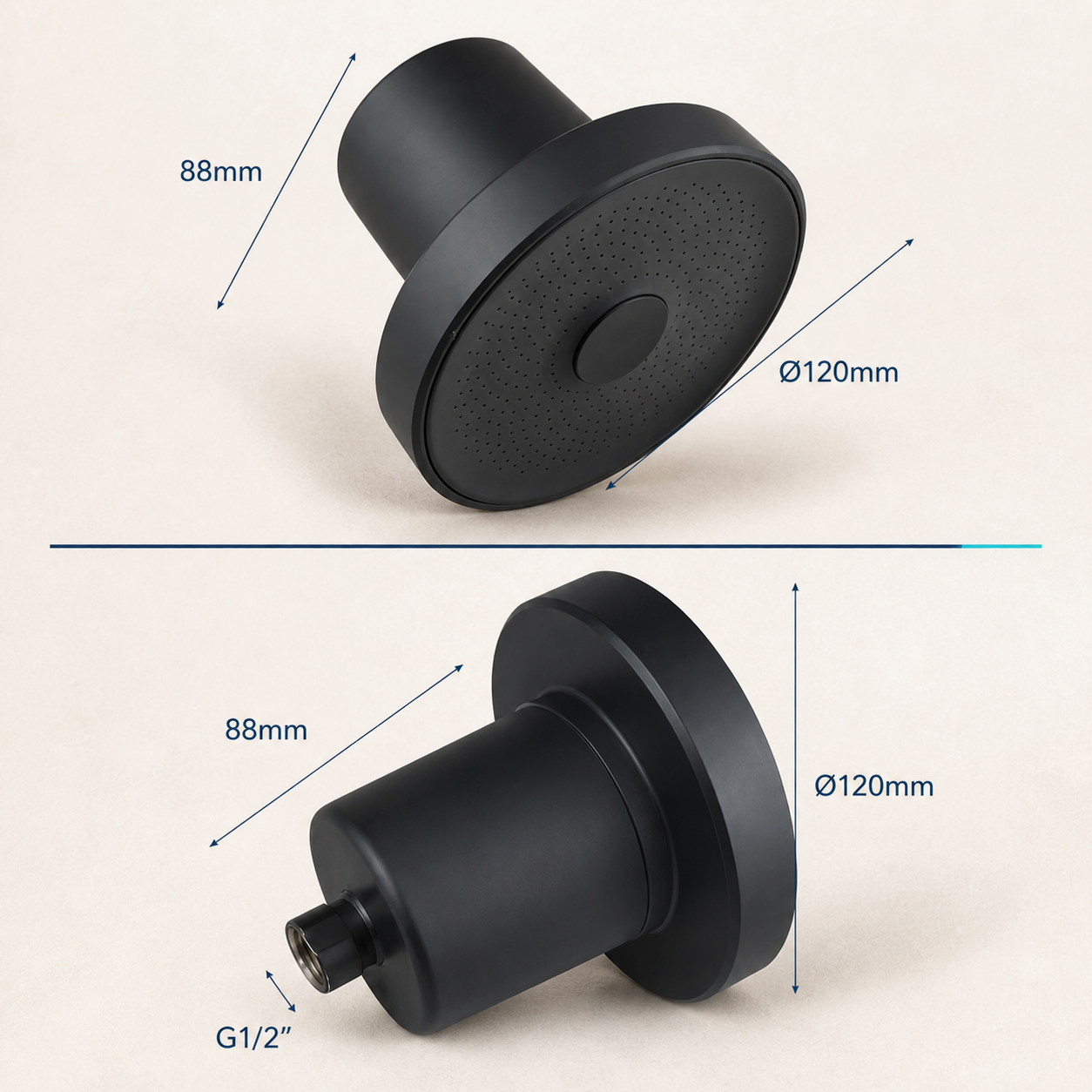

Integrated filtered shower heads

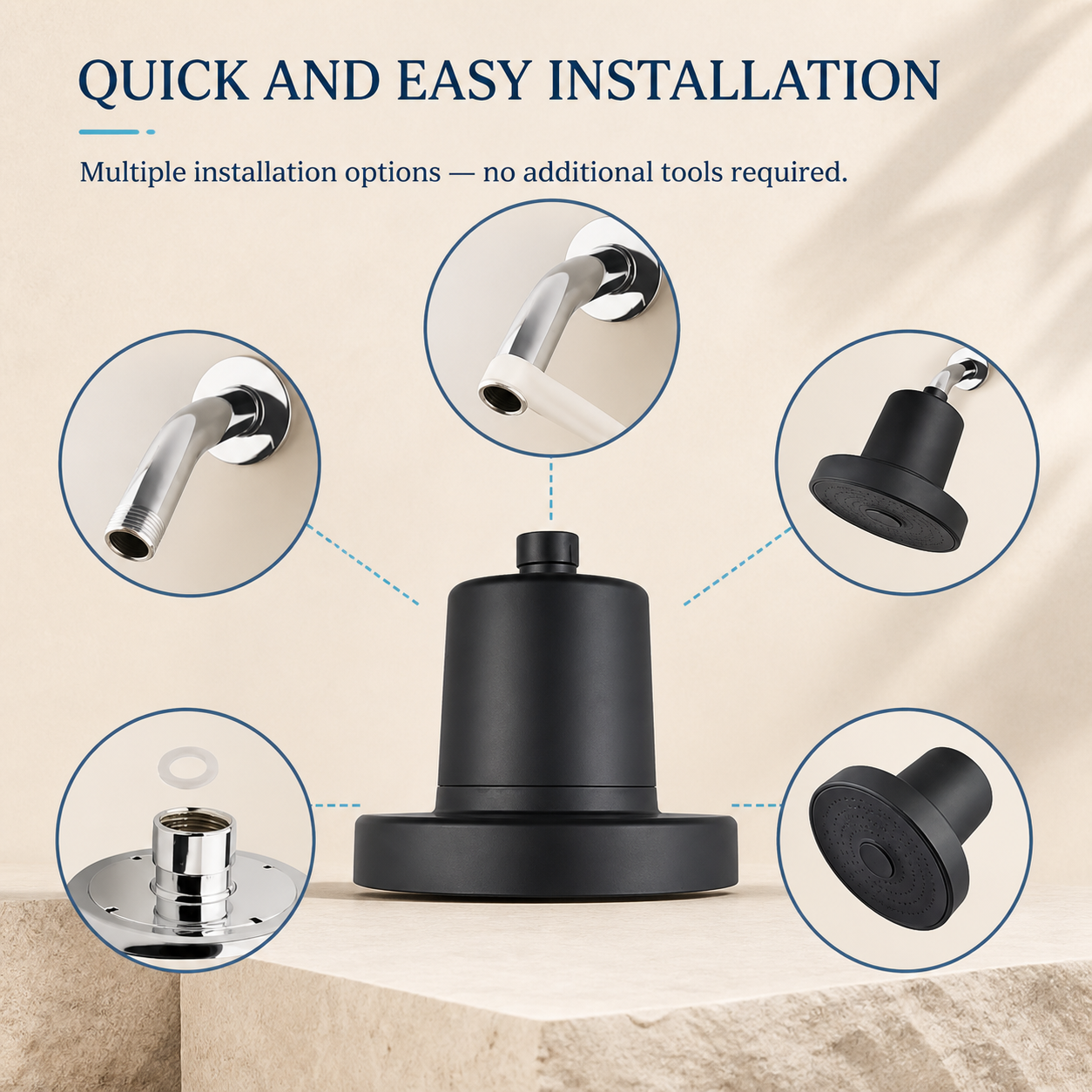

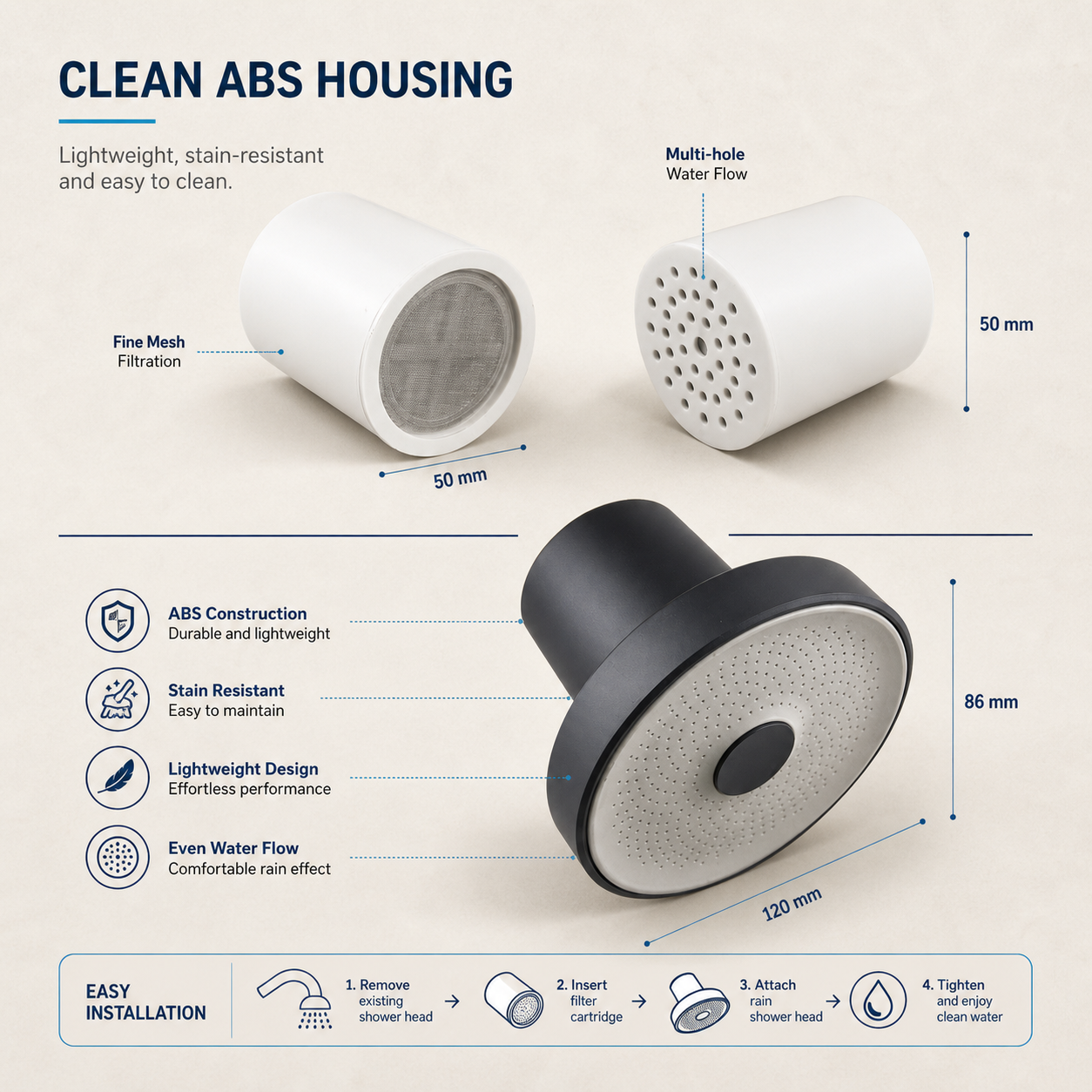

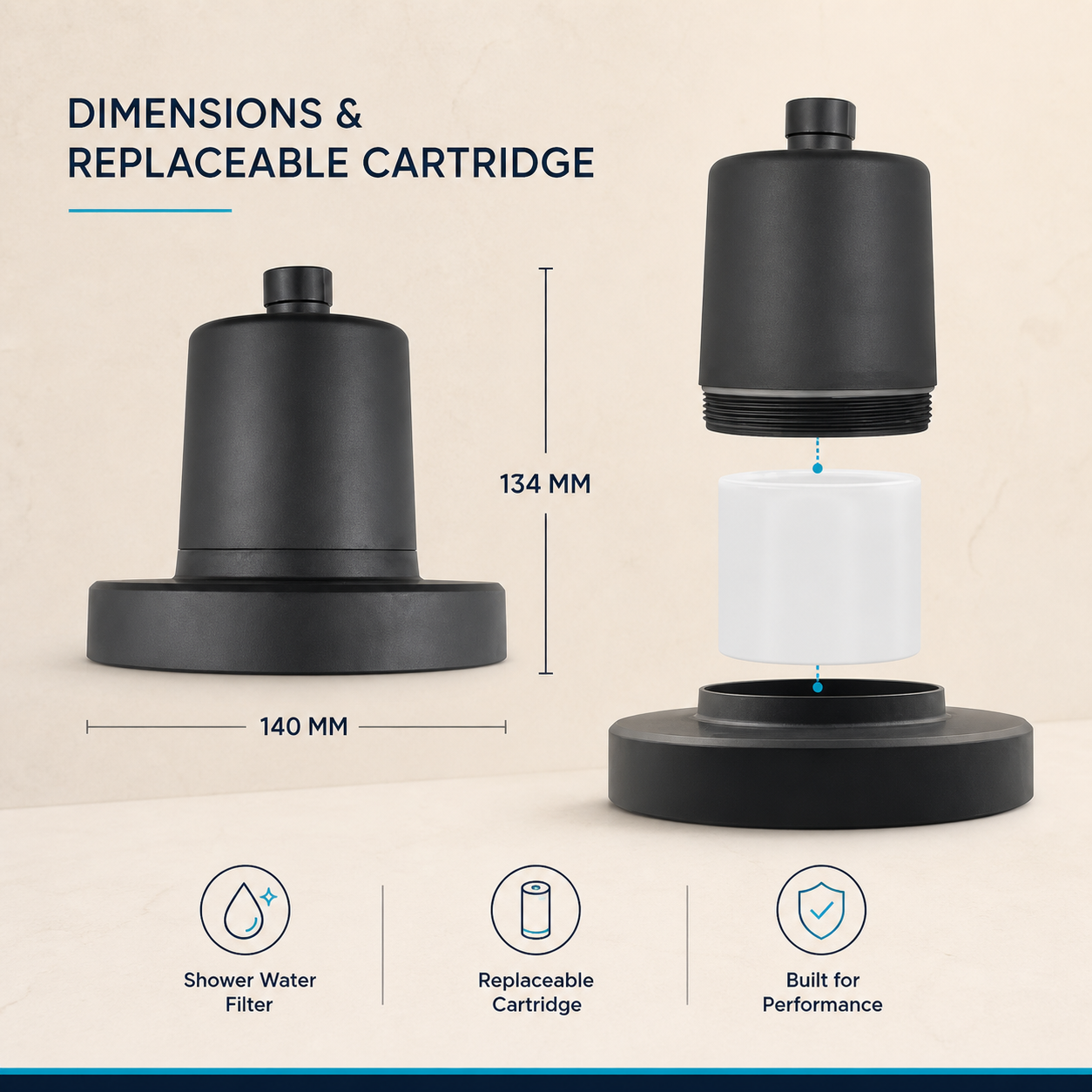

Review the complete head format, connection and installation arrangement. Confirm the filter configuration and how the replacement cartridge is accessed for the selected model. Filtered rain shower heads.
Inline shower filters
Check the space between the water supply and shower head, connection dimensions and installation orientation. Confirm the model's flow, pressure and temperature limits before selection. Ask about an inline filter configuration.
OEM replacement cartridges

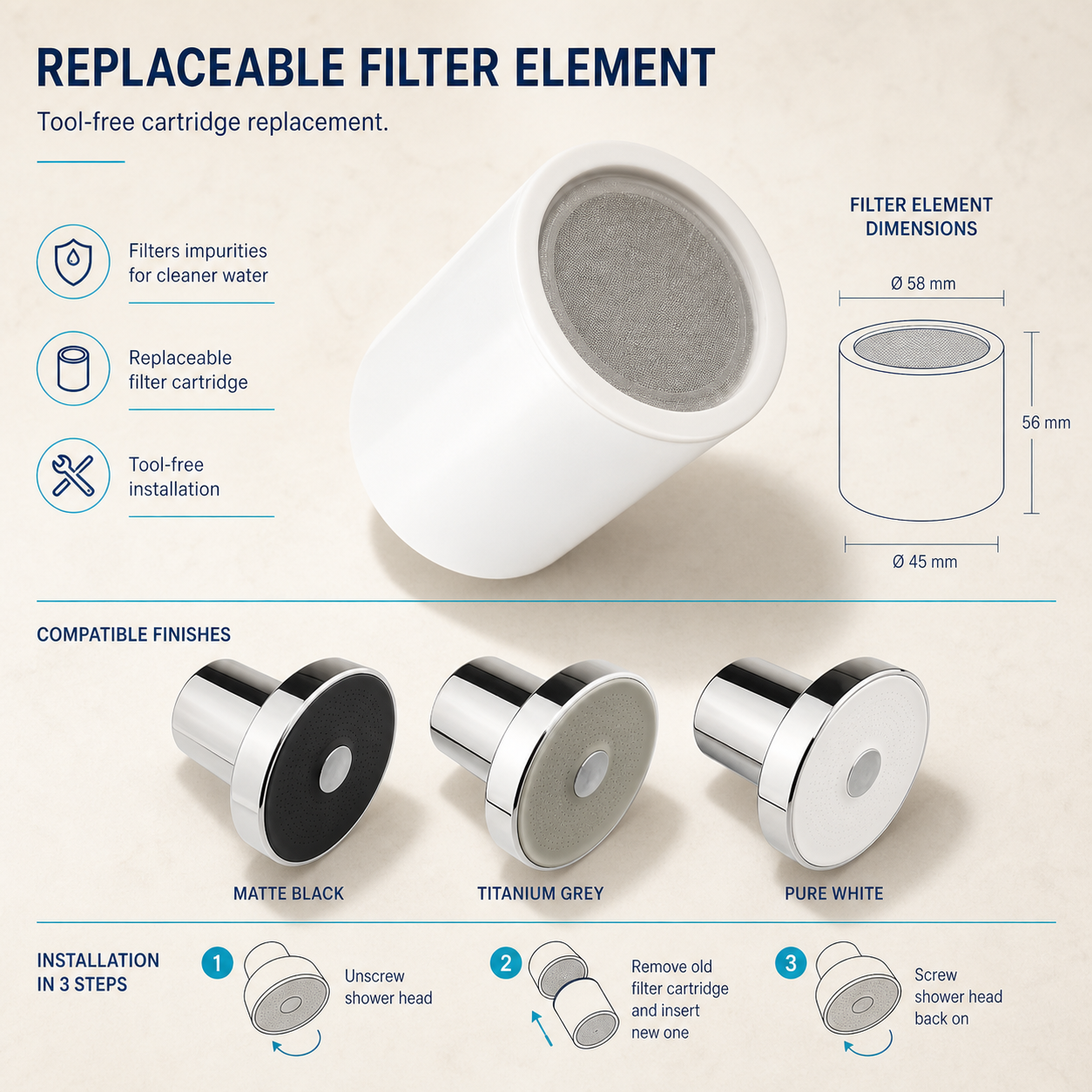

Provide the housing reference and cartridge dimensions together with the intended water conditions and documentation requirements. Coordinate cartridge identification, instructions and packaging. Custom shower filter cartridges.
Buyer questions
Will a shower filter fit every shower connection?
Compatibility must be checked for the exact connection and installation. Send the connection dimensions or photos and confirm any required adapter before ordering.
How often should the cartridge be replaced?
Use the guidance for the chosen cartridge and its operating conditions. Water quality and usage affect the replacement plan; a single interval should not be assumed for every model.
What performance documentation should buyers request?
Ask for model-specific reports covering the claimed treatment and stated test conditions, including flow and temperature where applicable. Confirm that the report applies to the ordered cartridge configuration.
OEM, private label and project support
Share your market, application, expected volume and branding requirements.
Identify a handheld head or an inline filter first
HY-01 to HY-04 and HY-06 are the current handheld references here; HY-14 and HY-15 are inline filter references. The model numbers are retained when a product is withdrawn, so gaps do not indicate missing specifications.
Compare the source-labelled size, media and reference service interval in each table, then confirm the connection drawing and replacement cartridge. Top-mounted heads are a separate mounting format. See the current model reference.
